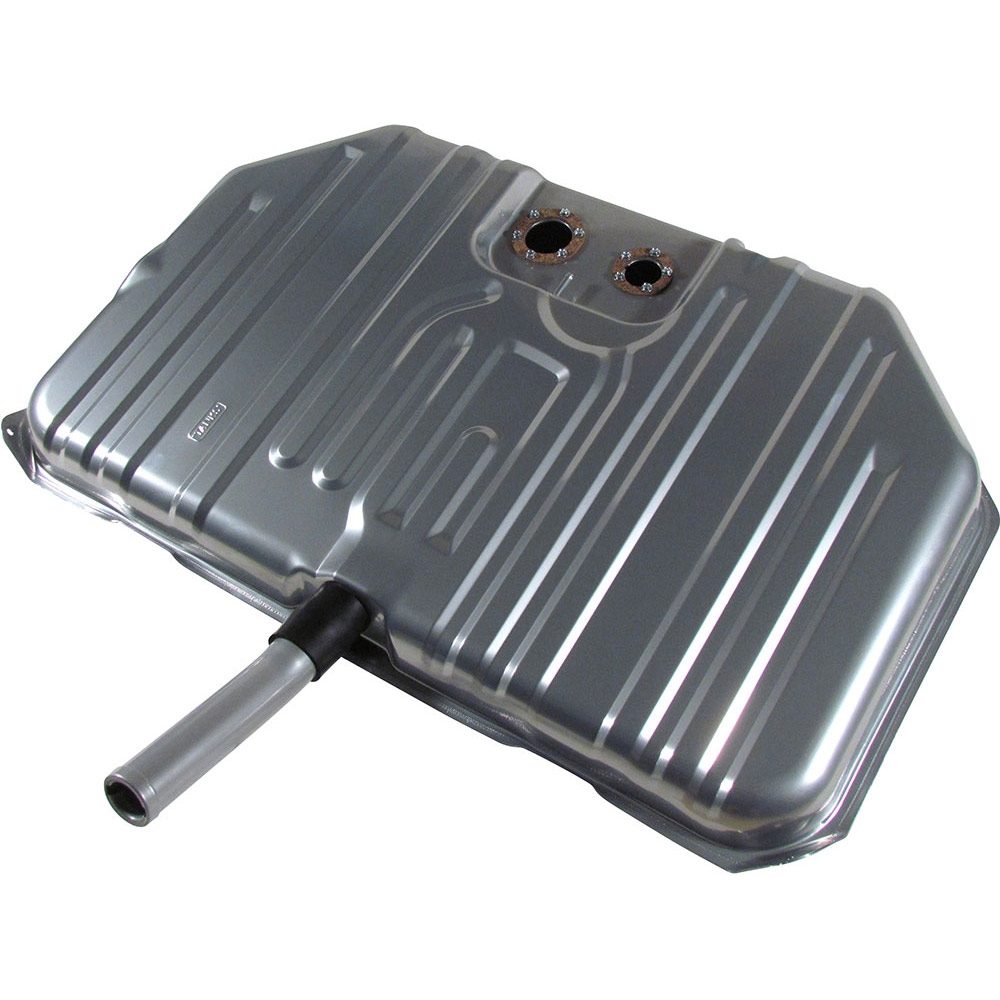

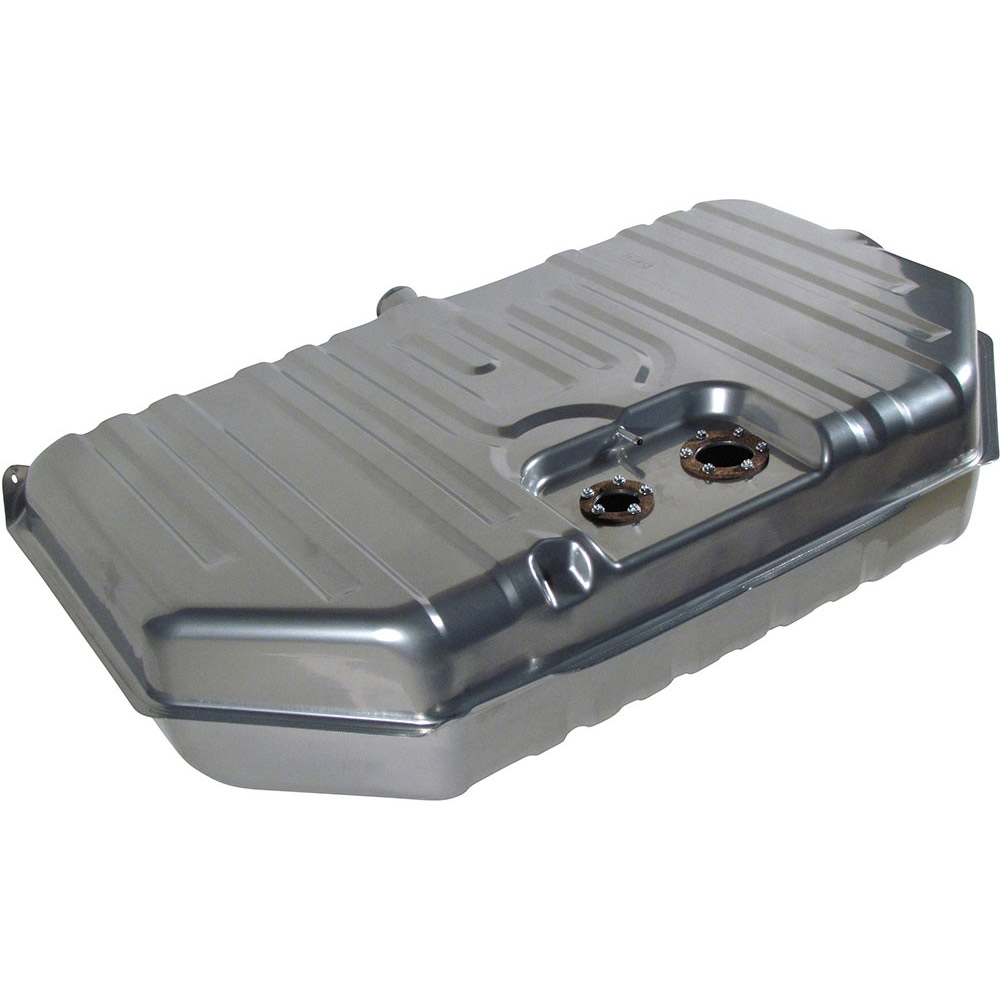

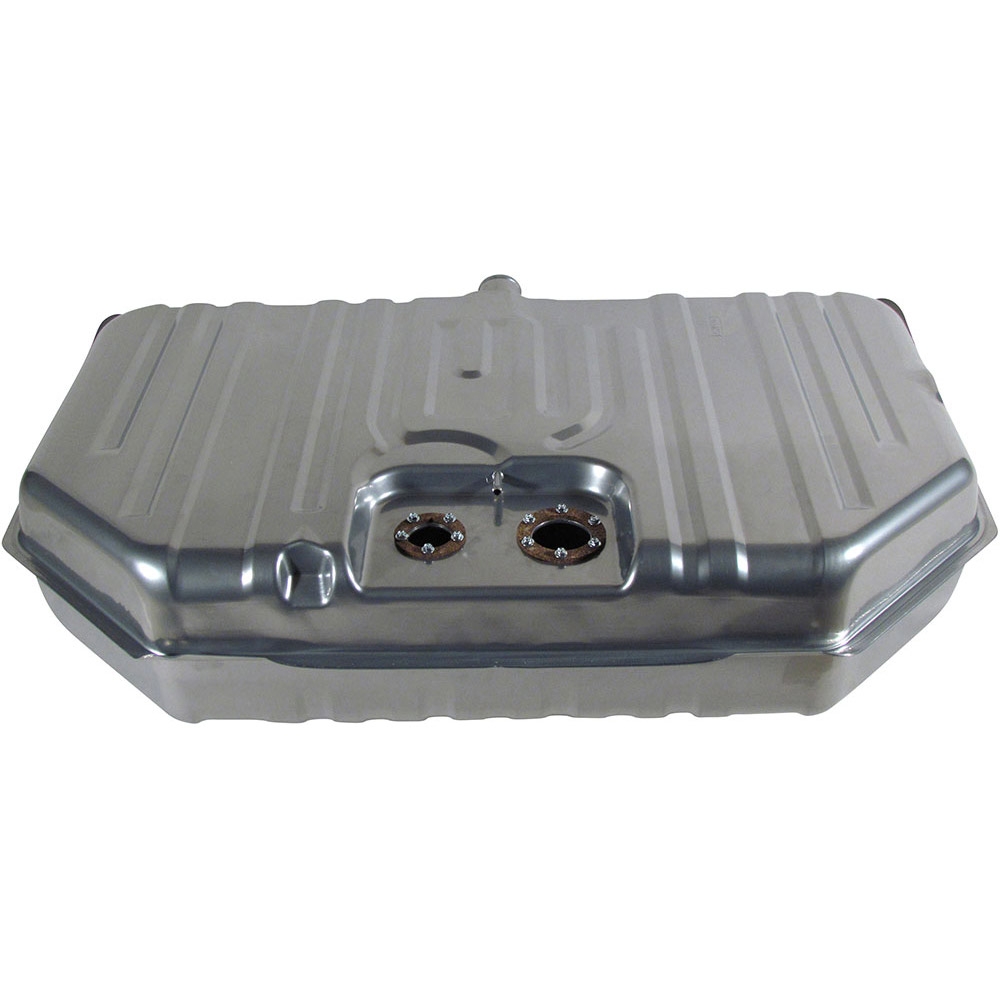

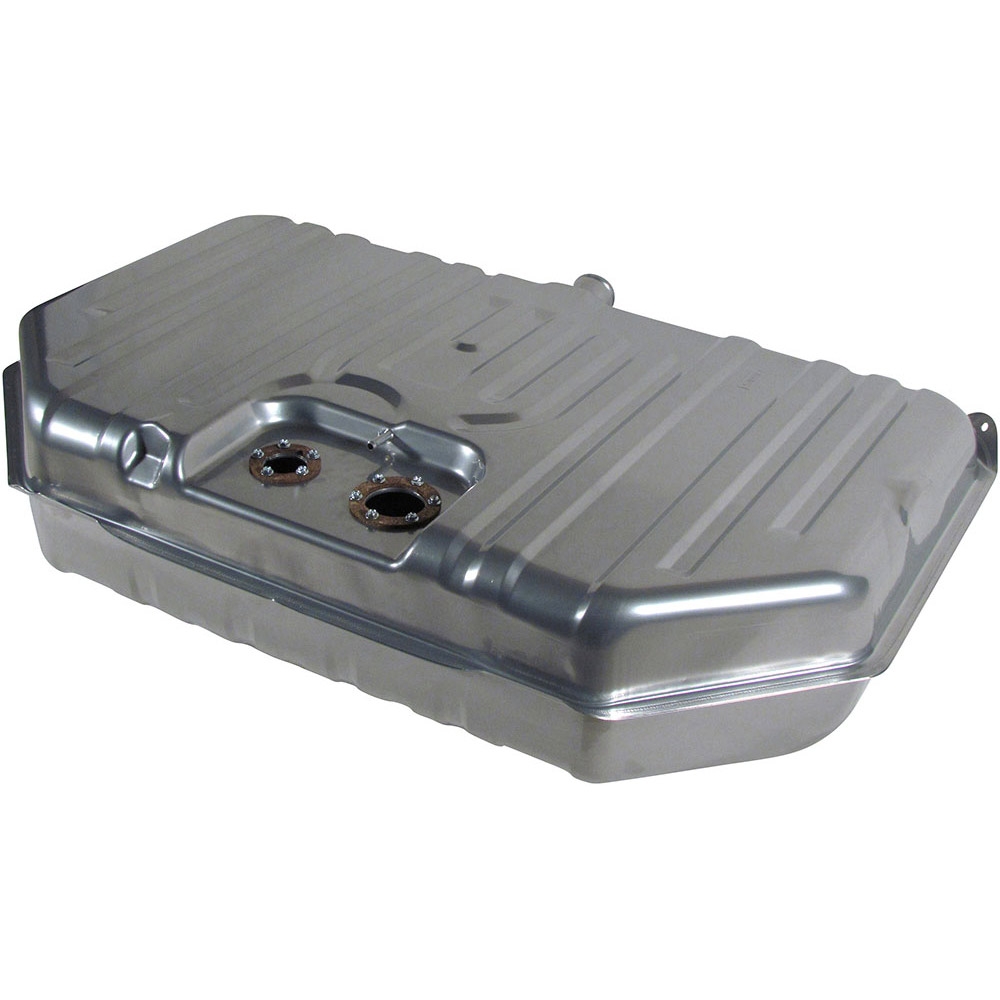

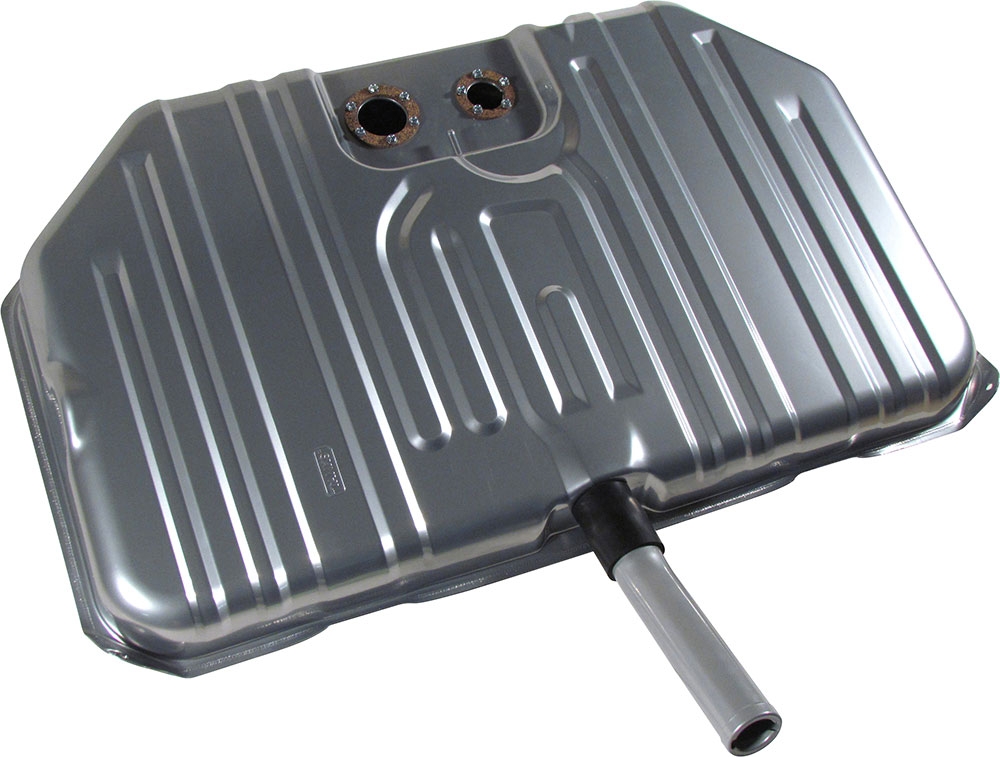

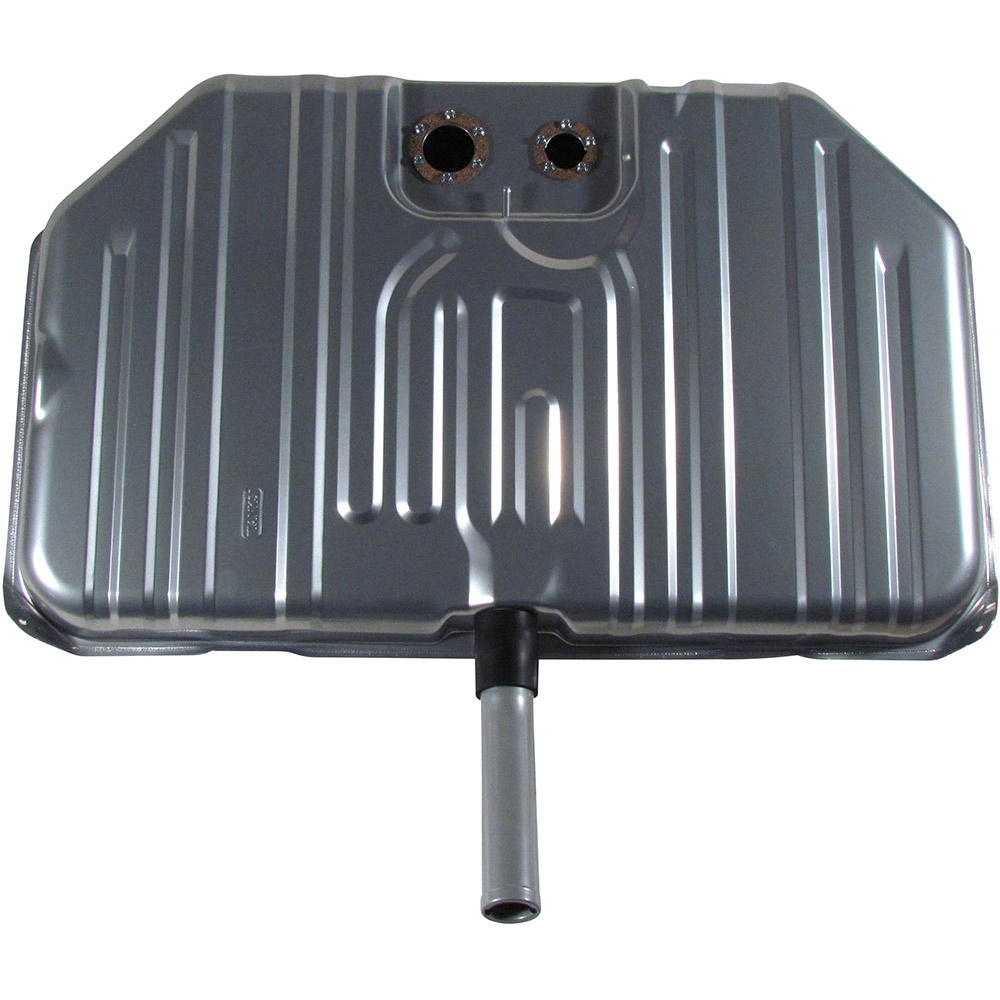

1968-69 Chevelle and 70 Skylark EFI Fuel Tank - Notched Corner
New and improved! This notched corner tank is perfect for mini-tub applications. Both corners are notched 7" in and 7" back for better tire and exhaust clearance. The rear of the tank is the stock depth while the front of the tank is 1" deeper than stock. This additional rake of the gas tank provides better fuel delivery to the pump.
- 1968-1969 Chevy Chevelle and Pontiac Beaumont EFI Tank
- 1970 Buick Skylark and GS EFI Tank
- Fuel Injection Ready!
- Includes 2 piece neck design that simply connects with supplied 2" ID rubber hose.
- Utilizes our GPA series fuel pumps, available in sizes from 109 to 450 liters per hour.
- Uses aftermarket 5-bolt senders. Multiple Ohm ranges available to work with factory or aftermarket gauges. If using tube sender length is 6".
- EFI style internal baffling with extra Large 4.8 liter dual tube baffled fuel tray to prevent fuel pump starvation.
- Perfect for your Pro-Touring, Autocross or Road Racing Ride.
- Fuel pump and sender are recessed in the tank for easy installation with no modification needed to your car.
- Looks like an OE tank when installed.
- Galvanized steel then Powder Coated Silver
- 20 Gallon Capacity
- 1" Deeper than stock
- Longer mounting straps included with the tank
- 39-1/4" x 24-1/2" x 8-3/4"
