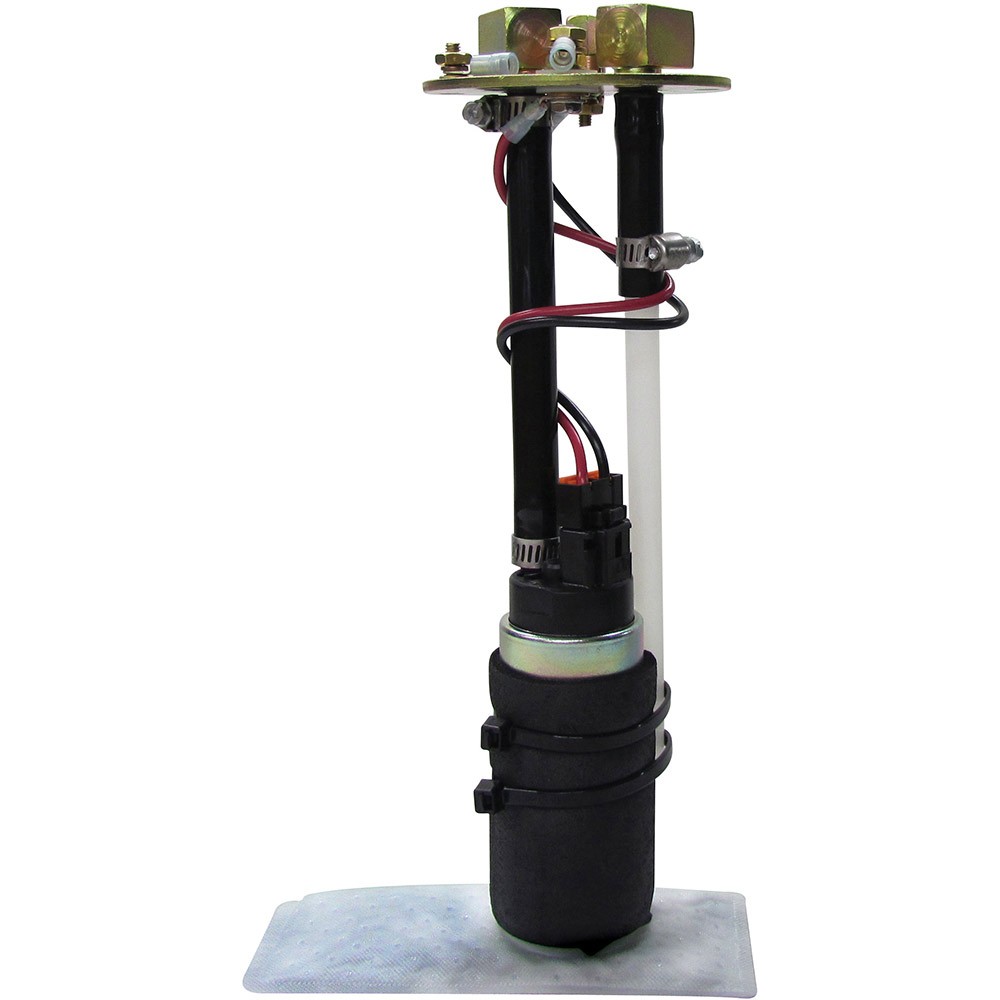

255 LPH Fuel Pump For EFI Ready Tanks Inc Fuel Tanks.
- Made in the USA
- Yellow Zinc Plated Heavy duty 10 gauge mounting plate
- Female 1/4" NPT Supply and Return Line Fittings
- 5/16" Barbed Vent Fitting
- Oven brazed fittings
- 100 PSI Max
- High quality Nickle Plated Brass Wire Pass Through w/ Viton Seal
The GPA-Series Fuel Pump Module is designed to be used in many of "Tanks Inc" gas tanks that have factory-installed reservoir trays. The tray is an absolute necessity for fuel-injection in order to prevent fuel starvation when accelerating and cornering.
Tanks inc only uses Walbro high-performance pumps in all of their modules, and offer multiple operating ranges in order to supply up to approximately 1000 horsepower. The internal wiring harness, supply line, return line, filter sock and insulator sleeve are included.
This Pump Assembly is designed for use with EFI vehicles with less then 630 hp. It also works well on High Horse power carbureted applications with the use of a bypass fuel pressure regulator and return line.
NOTE: NOT COMPATIBLE WITH PULSE WIDTH MODULATION SEE GPA-5,6,8, or 9 SERIES FUEL PUMPS FOR PWM PUMPS.
