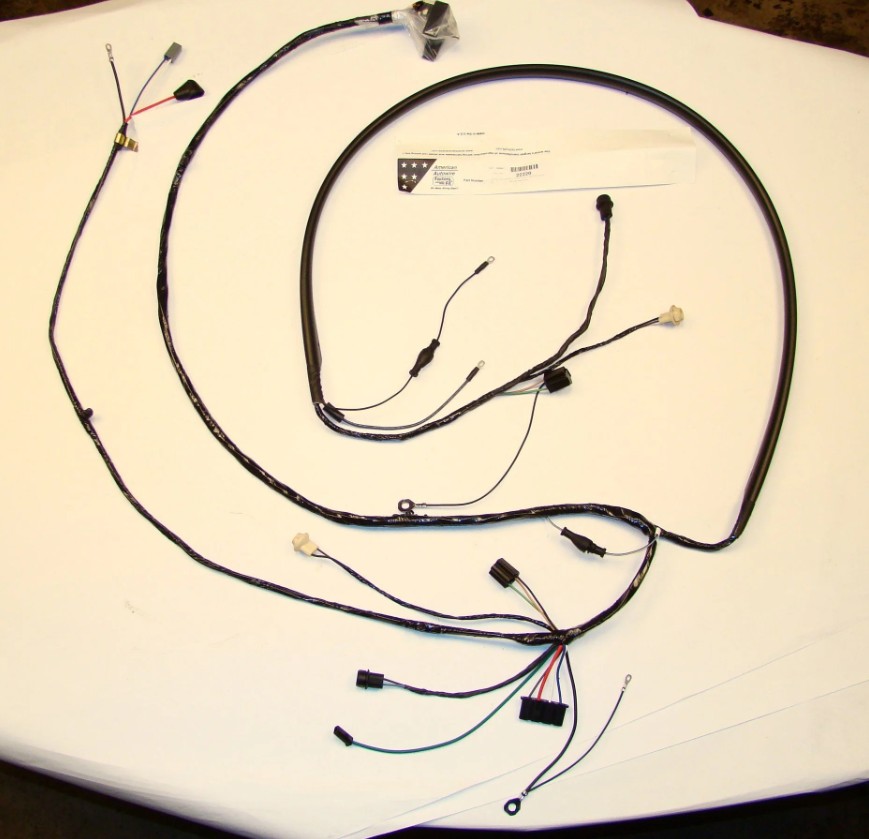

American Autowire 22220 Front Light Wiring Harness for 1969–72 Chevrolet Pickup Trucks
The American Autowire 22220 is a Factory Fit front light wiring harness engineered to meet original General Motors specifications. It’s designed to restore the front-end electrical system of 1969–1972 Chevrolet pickup trucks with factory gauges and side marker lamps.
Key Features:
- OEM-Style Reproduction: Built using GM’s original engineering blueprints, this harness replicates the factory layout, connectors, and wire colors for an authentic restoration.
- Fully Assembled and Taped: Arrives ready to install, with all wires pre-terminated and bundled according to original routing.
- Firewall Integration: Plugs directly into the factory firewall bulkhead connector, maintaining the original interface between the engine bay and interior wiring.
- Comprehensive Circuit Coverage: Includes wiring for:
- Headlights (high and low beam)
- Parking lights
- Turn signals
- Horn and horn relay
- Charging system (for alternator with external voltage regulator)
Vehicle Fitment:
- Chevrolet Pickup Trucks – 1969, 1970, 1971 and 1972 with factory gauges and side marker lamps
Compatibility Notes:
- Designed for vehicles with an original alternator and external voltage regulator.
- Front light harness designs vary by year and model, so it’s important to verify circuit requirements using a factory service manual.
Installation Tips:
- Pair with an engine harness for complete under-hood wiring coverage.
- Use proper crimping tools for any custom modifications or terminal replacements.
- Consult American Autowire’s sales team for help confirming part numbers and fitment
