Adjustable Fuel Sender for 6 to 24" Deep Tanks - 240-33 OHM

Part Number: TAN-SW

US$39.95

Status: Preorder

EA (1)

Description

Description

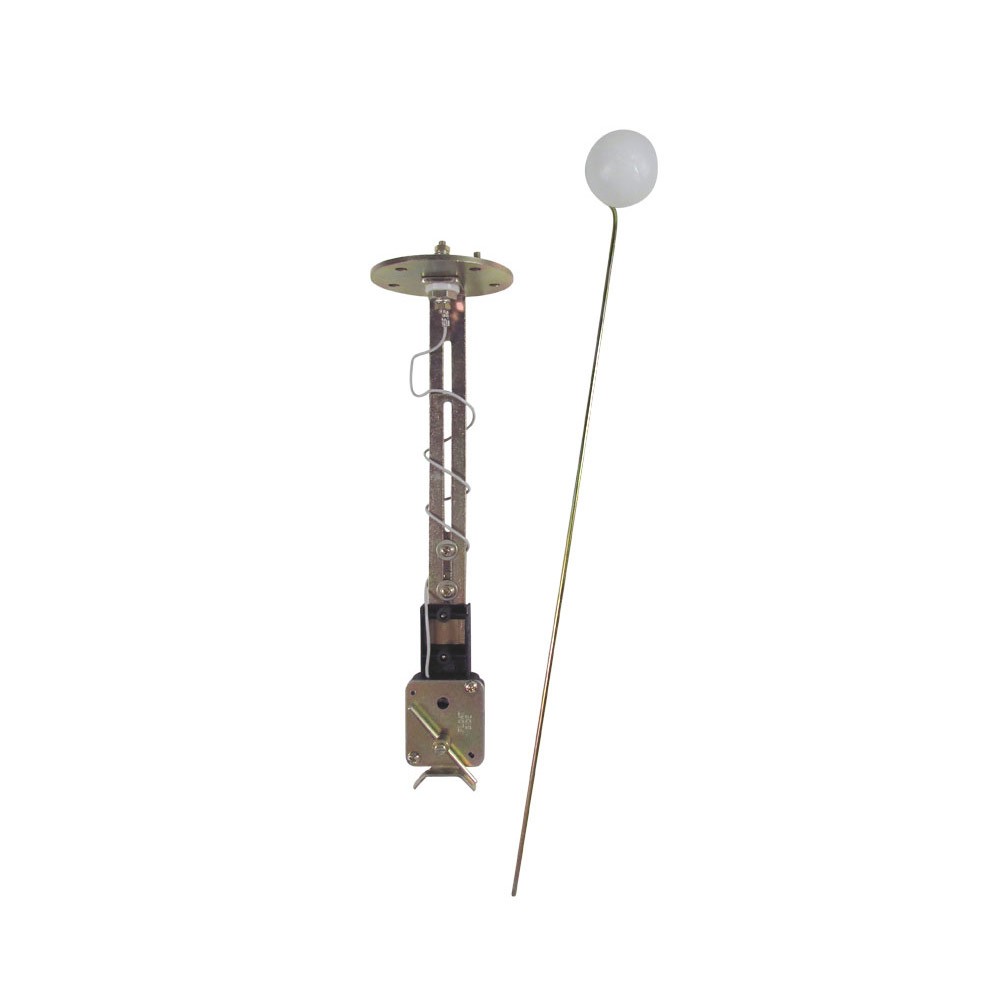

5 Bolt After Market Fuel Sender 240-33 OHM

  • Yellow Zinc Plated Steel Bracket and Plate w/ Ground Stud
  • Adjustable from 6"-24"
  • Gasket and Hardware included
  • Ceramic Board
  • See application chart below for more options.

                       Application Listing:

  • The resistance of your fuel sender should match that of your gauge.  For instance the resistance of the stock gauge in a 55 Chevy has a value of zero ohms when empty and 30 ohms when full.  The following list is for stock gauges and some popular aftermarket brands:

    • Ford up to 1986 - 73-10 Ohms
    • Ford 1987 & up - 16-158 Ohms
    • GM up to 1964 - 0-30 Ohms
    • GM 1965-1997 - 0-90 Ohms
    • GM 1998 & up - 40-250 Ohms
    • Mopar up to 1986 - 73-10 Ohms
    • AMC 1950-1977 - 73-10 Ohms
    • Autometer -240-33 Ohms is the most common however other ohm ranges are made
    • Classic Instruments - 240-33 Ohms (excluding vehicle specific gauge kits which use factory ohm range)
    • Dolphin - 0-90 Ohms
    • Dakota Digital - Programmable to work with most Ohm range senders
    • VDO - 10-180 Ohms

    The first number represents the empty Ohm reading and the second number is the full reading.

Part Number for Each ohm range

  • TAN-SW - 240-33 Ohms
  • TAN-VDO -10-180 Ohms
  • TAN-GME - 0-30 Ohms
  • TAN-GML - 0-90 Ohms
  • TAN-ORG - 73-10 Ohms

This sender will work on fuel tanks from 6 to 24 inches deep by cutting to length using the instructions included. Since fuel tank senders only read resistance to ground they work on all 6-24 volt systems positive or negative ground. They do not have a fuel pickup tube built into them as some original senders may have. Our fuel fuel senders cover many applications, but If you do not see your application give us a call or Check out part number TAN-MM.
