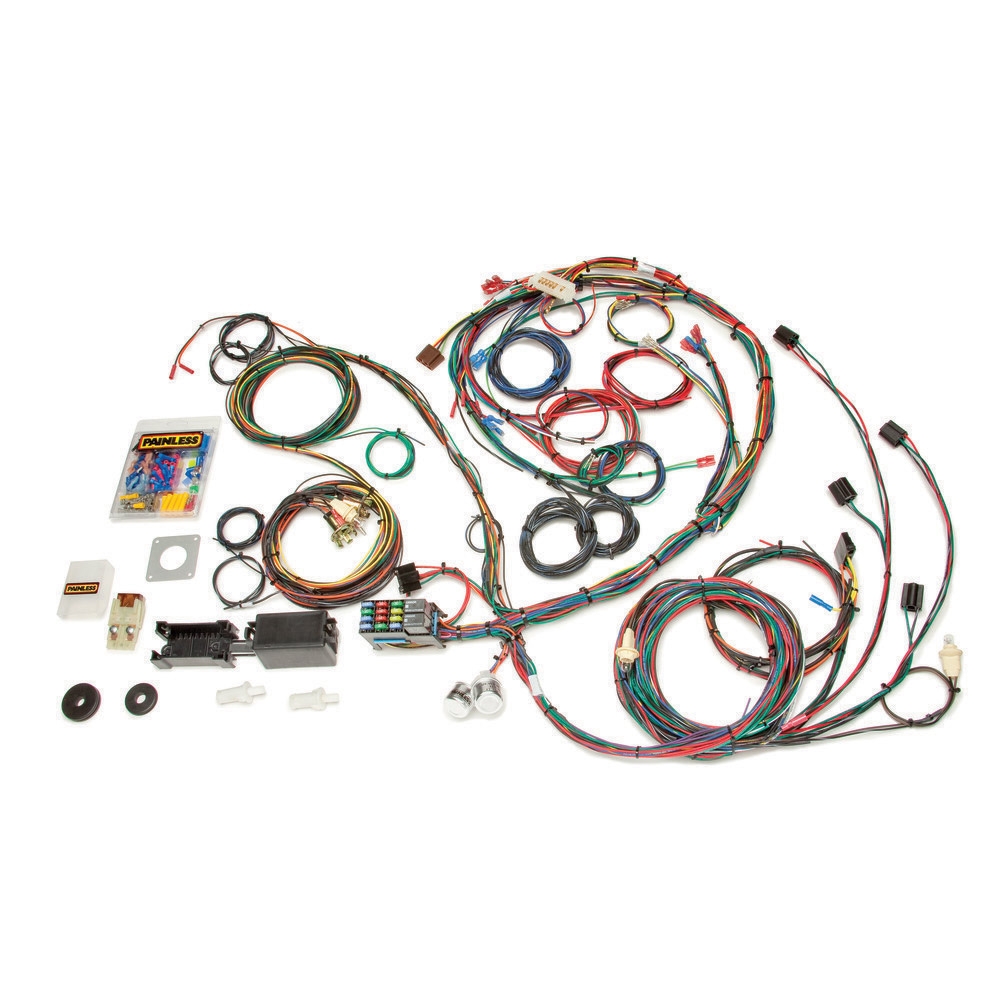

22 Circuit Direct Fit 1969-70 Mustang Chassis Harness
This 22 circuit direct fit 1969-1970 Ford Mustang wiring harness has many of the factory connectors already installed on the harness out of the box. This harness uses our unique covered micro-fuse block. Also featured is an auxiliary circuit with 20 amp relay for accessories such as fog lights, or an electric fuel pump. Each wire is custom printed with the circuit identification as well as using Ford wiring color codes for easy installation.
Number of Circuits: 22 Circuits - 12 Fuses w/ Horn Relay, Accessory Relay and Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Mini Blade and Maxi Fuse
Firewall Passthrough: Grommet
Color Code Based: Factory Ford
Circuit Designations: Printed on Wires
Complete Ford color-coded chassis wiring harness for:
- 1969 Ford Mustang
- 1970 Ford Mustang
This harness includes circuits for:
- A/C and Heat
- Accessory / Cigarette Lighter
- Accessory Relay
- Backup Lights
- Brake Lights
- Charging
- Courtesy and Dome Lights
- Electric Choke
- Emergency Flashers
- Fused Power Source
- Glove Box Light
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights and License Plate Light
- Trunk Light
- Turn Signals
- Wipers and Washer Pump
* Including Wires For:
- Aftermarket Tachometer
- Ammeter
- Brake Warning Light
- Fuel Gauge
- Gear Indicator Light
- Oil Gauge
- Tachometer
- Temperature Gauge
- Voltmeter
Fitment:
- Year: 1969-1970
- Make: Ford
- Model: Mustang
- Engine: Carbureted or Any Stand Alone Fuel Injection
- Trans.: Any
