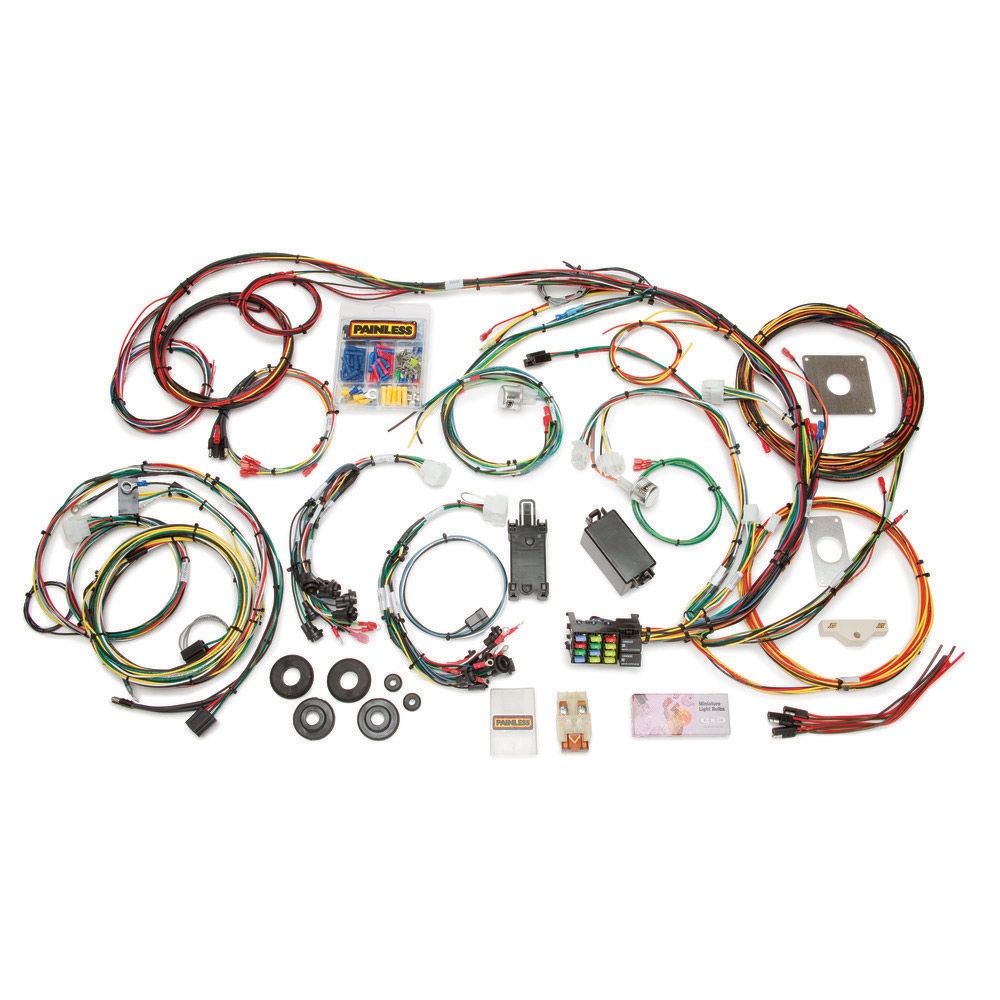

1965-66 Ford Mustang 22 Circuit Direct Fit Chassis Harness

Part Number: PPP20120

Leadtime Estimate if Not in Stock
Ships In 7-10 Days
US$887.00

Status: In Stock

KT (1)

Description

Description

22 Circuit Direct Fit 1965-66 Mustang Chassis Harness

This 22 circuit direct fit 1965-1966 Ford Mustang wiring harness has many of the factory connectors already installed on the harness out of the box. This harness uses our unique covered micro-fuse block. Also featured is an auxiliary circuit with 20 amp relay for accessories such as fog lights, or an electric fuel pump. Each wire is custom printed with the circuit identification as well as using Ford wiring color codes for easy installation.

Fits:

  • 1965 Ford Mustang
  • 1966 Ford Mustang

NOTE: THIS HARNESS WILL NOT FIT 1964 1/2 MUSTANGS

  • Number of Circuits: 22 Circuits - 12 Fuses w/ Horn Relay, Accessory Relay and Maxi Fuse
  • Harness Length: Factory Fitment
  • Fuse Type: Mini Blade and Maxi Fuse
  • Firewall Passthrough: Grommet
  • Color Code Based: Factory Ford
  • Circuit Designations: Printed on Wires

Connections Included:

  • Blower motor
  • wipers
  • ignition
  • headlight switches
  • voltage regulator
  • turn signals and flashers
  • lighter
  • brake switch
  • dimmer switch
  • brake warning light and headlight bulbs

Complete Ford color-coded chassis wiring harness for:

  • 1965 Ford Mustang
  • 1966 Ford Mustang

This harness includes circuits for:

  • A/C and Heat
  • Accessory / Cigarette Lighter
  • Accessory Relay
  • Backup Lights
  • Brake Lights
  • Charging
  • Courtesy and Dome Lights
  • Electric Choke
  • Emergency Flashers
  • Fan Relay Activation Power
  • Fused Power Source
  • Glove Box Light
  • Headlights
  • Horn (Relay)
  • Ignition Coil
  • Instrument Panel Lighting and Gauges*
  • Park Lights
  • Radio/Clock (Constant and Switched)
  • Starting
  • Tail Lights and License Plate Light
  • Turn Signals
  • Wipers and Washer Pump

* Including Wires For:

  • Ammeter
  • Fuel Gauge
  • Oil Gauge
  • Tachometer
  • Temperature Gauge
  • Voltmeter

Applications

Applications

Fitment

  • 1965-1966 Ford Mustang (Coupe)
