21 Circuit Direct Fit 1966-67 Chevy II/Nova Chassis Harness

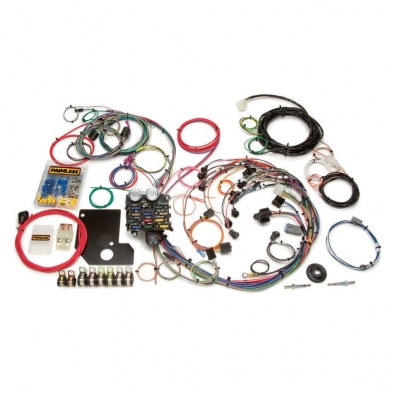

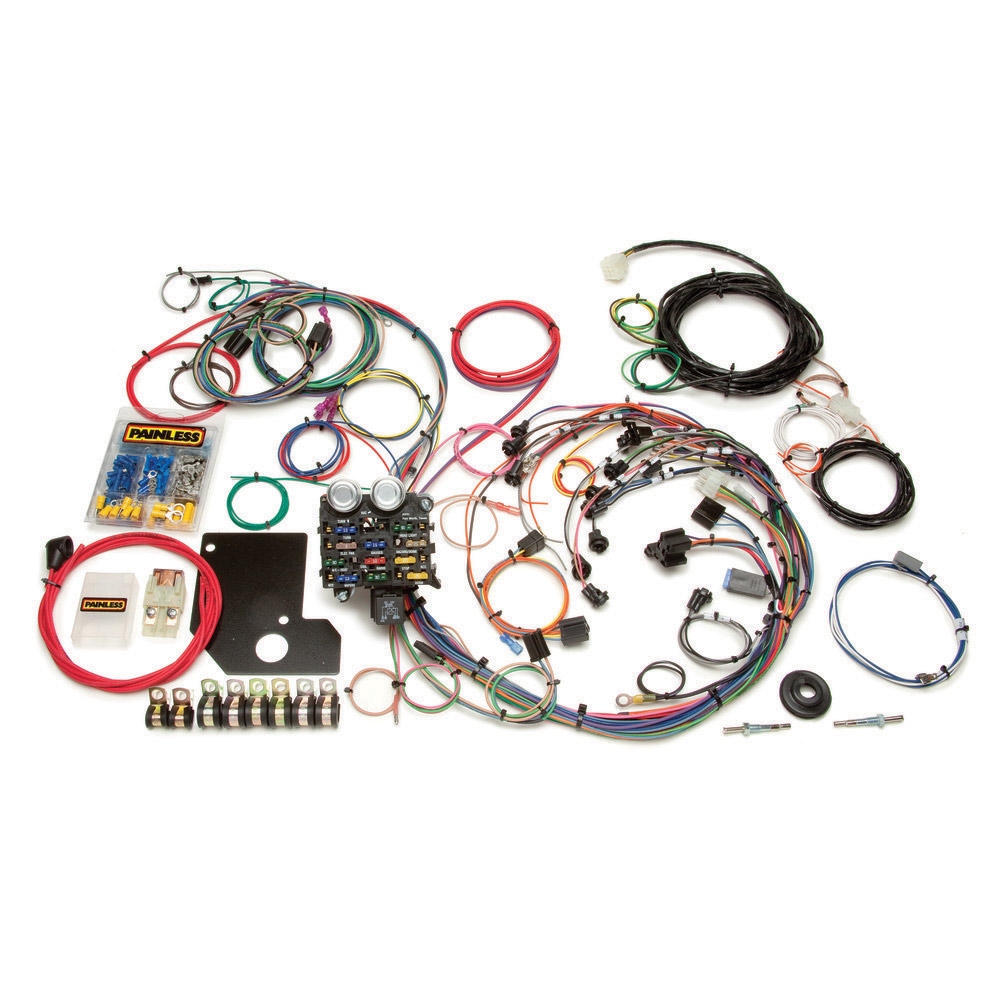

This 21 circuit direct fit wiring harness has many of the factory connectors already installed on the harness out of the box for your 1966 or 1967 Chevy II or Nova. Including: the headlight connectors and switch, fuel gauge connector, dimmer switch, brake switch, heater switch, blower resistor, wiper switch, backup switch, horn, dash light sockets, and warning light sockets. This harness is split into three sections (engine, dome light, and rear) for easy installation and troubleshooting. You'll also find in this kit a harness for the factory air, a high output alternator pigtail with the connector installed, two door jam switches, 12 instrument panel light bulbs, eight harness mounting clamps, a custom Painless mounting plate for the fuse block, and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.
Wire your Nova once and wire it right with Painless Wiring!
- Number of Circuits: 21 Circuits - 12 Fuses w/ Horn Relay and Maxi Fuse
- Harness Length: Factory Fitment
- Fuse Type: Blade and Maxi Fuse
- Firewall Passthrough: Grommet
- Color Code Based: Factory GM
- Circuit Designations: Printed on Wires
Connections Included:
- Headlight switch
- Headlight connectors
- Fuel gauge connnector
- Dimmer switch
- Brake switch
- Heater switch
- Blower resistor
- Wiper switch
- Backup switch
- Horn
- Dash light sockets
- Warning light sockets
Complete automotive chassis wiring harness fits:
- 1966 Chevrolet II or Nova
- 1967 Chevrolet II or Nova
This harness includes circuits for:
- A/C and Heat
- Accessory / Cigarette Lighter
- Backup Lights
- Brake Lights
- Charging
- Dome Light
- Electric Choke
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Glove Box Light
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights And License Plate Light
- Turn Signals
- Wipers
* Including Wires For:
- Brake Warning Light
- Charge Light
- Fuel Gauge
- Oil Gauge
- Tachometer
- Temperature Gauge
