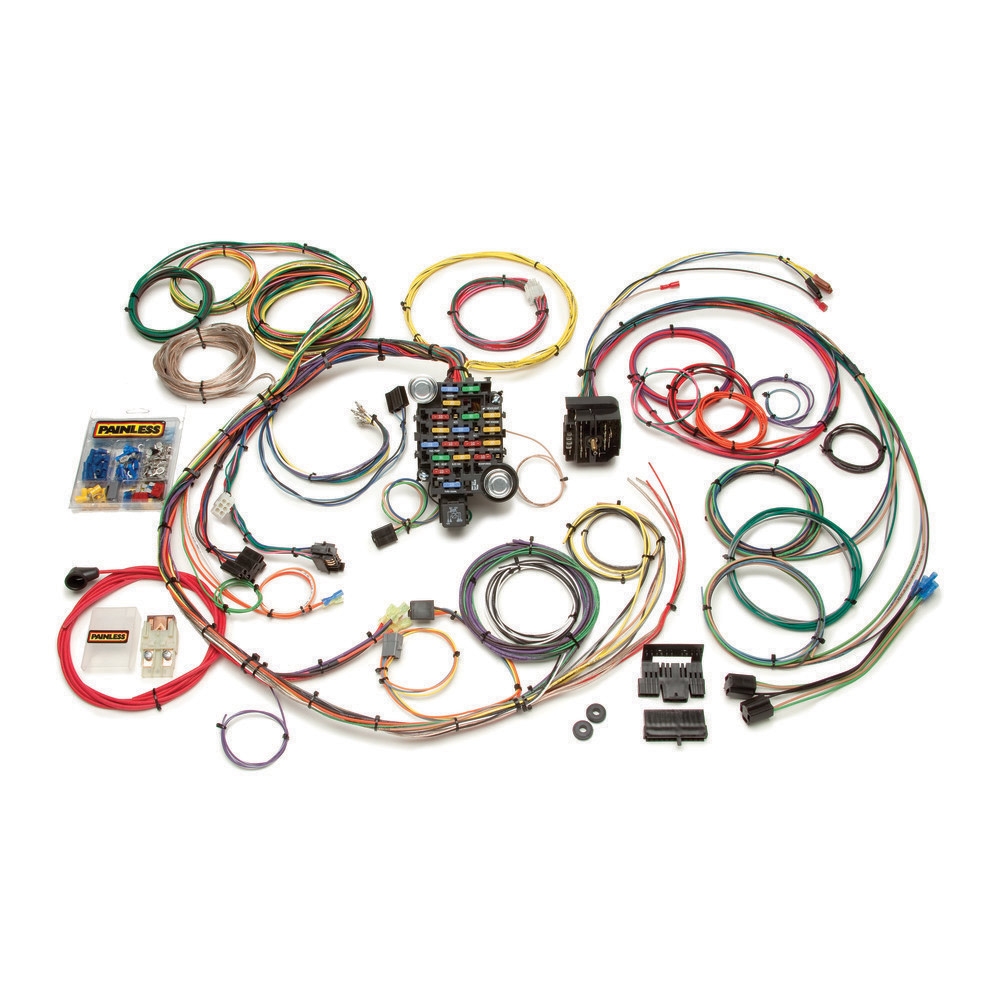

24 Circuit Classic-Plus Customizable 1967-68 Camaro/Firebird Harness
This 24 circuit Painless wiring harness is designed for the 1967 and 1968 Camaro and Firebird*. It uses a '69 and newer style bulkhead connector design along with blade fuses and enough circuits to wire up just about any installed upgrade to your 1st generation F-body. Some minor firewall/bulkhead modification required. Factory original quick connect terminals are included for the in dash printed circuit board. Pre-terminated plugs for a dimmer switch, headlights and headlight switch, blower motor, wiper motor, and turn signal switch. Included with this harness you'll also find a detailed manual and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation. Easy. Simple. Painless.
*note if installing in a Firebird you will need extra head light pig tails part number PPP80300 as the Firebird has 4 head lights.
Number of Circuits: 24 Circuit - 18 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Blade and Maxi Fuse
Firewall Passthrough: Bulkhead Connector
Color Code Based: Factory GM
Circuit Designations: Printed on Wires
Connections Included:
Ignition switch, Turn signal switch, Wiper switch and Factory original, quick connect terminals are included for the in-dash printed circuit board, 10SI and 12 SI Alternator, HEI Power and Tach and 20 Extra 56 Series Terminals for use with any Factory GM 56 Series Connector such as Headlight Switch, Wiper Switch or A/C Switch/Blower Motor.
Automotive wiring harness for:
- 1967 Chevrolet Camaro or Pontiac Firebird
- 1968 Chevrolet Camaro or Pontiac Firebird
NOTE: All 1967 RS vehicles require the use of PPP30818 headlight harness.
This harness includes circuits for:
- A/C and Heat
- Accessory / Cigarette Lighter
- Accessory / Trunk Light
- Backup Lights
- Brake Lights
- Charging
- Dome and Courtesy Lights
- Electric Choke
- Electric Fuel Pump
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Power Door Locks
- Power Windows
- Radio/Clock (Constant and Switched)*
- Starting
- Tail Lights and License Plate Light
- Third Brake Light
- Turn Signals
- Wipers and Washer Pump
* Including Wires For:
- Cigarette Lighter Light
- Brake Warning Light
- Fuel Gauge
- Generator Light
- Oil Gauge
- Speakers
- Tachometer
- Temperature Gauge
- Voltmeter
