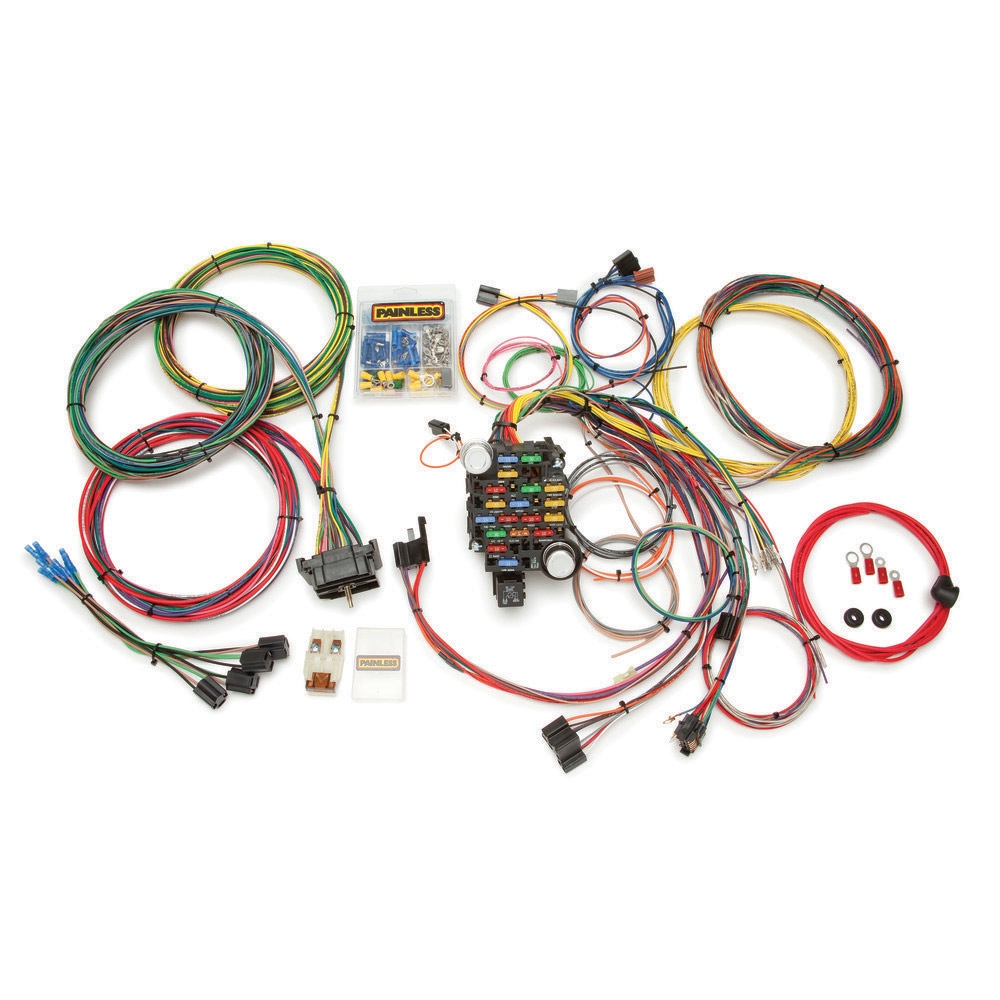

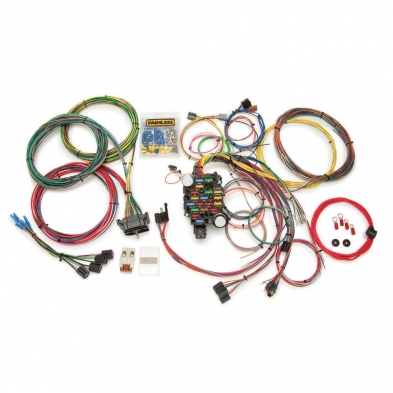

28 Circuit Classic Customizable Trunk Mount Chassis Harness
Tired of crawling up under the dash? Are you looking to remote mount your fuse block and you want full power options? Then this 28 circuit Painless wiring harness will provide you with all those power accessory circuits, as well as extra-long wires allowing you to mount the fuse block in a remote location such as in the trunk or behind the rear seat. Included with this harness are the following parts; GM turn signal and column mounted ignition switch connectors; pre wire plugs for the headlights and dimmer switch; and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.
Number of Circuits: 21 Circuits - 18 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Extra Long Universal
Fuse Type:Blade and Maxi Fuse
Firewall Passthrough: Multiple Grommet
Color Code Based: Universal
Circuit Designations: Printed on Wires
Connections Included:
GM Column Mounted Ignition and Turn Switches, Dimmer Switch and Two Headlight Pigtails
This harness includes circuits for:
- A/C and Heat
- Accessory
- Accessory / Cigarette Lighter
- Accessory / Trunk Light
- Backup Lights
- Brake Lights
- Charging
- Cruise Control
- Dome Light
- Electric Choke
- Electric Fuel Pump
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Power Antenna
- Power Door Locks
- Power Windows
- Radio/Clock (Constant and Switched)*
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
* Including Wires For:
- Fuel Gauge
- Oil Gauge
- Speakers
- Tachometer
- Temperature Gauge
- Voltmeter
Fitment:
- Year: Universal
- Make: Universal
- Model: Universal
- Engine: Carbureted or Any Stand Alone Fuel Injection
- Trans.: Any
