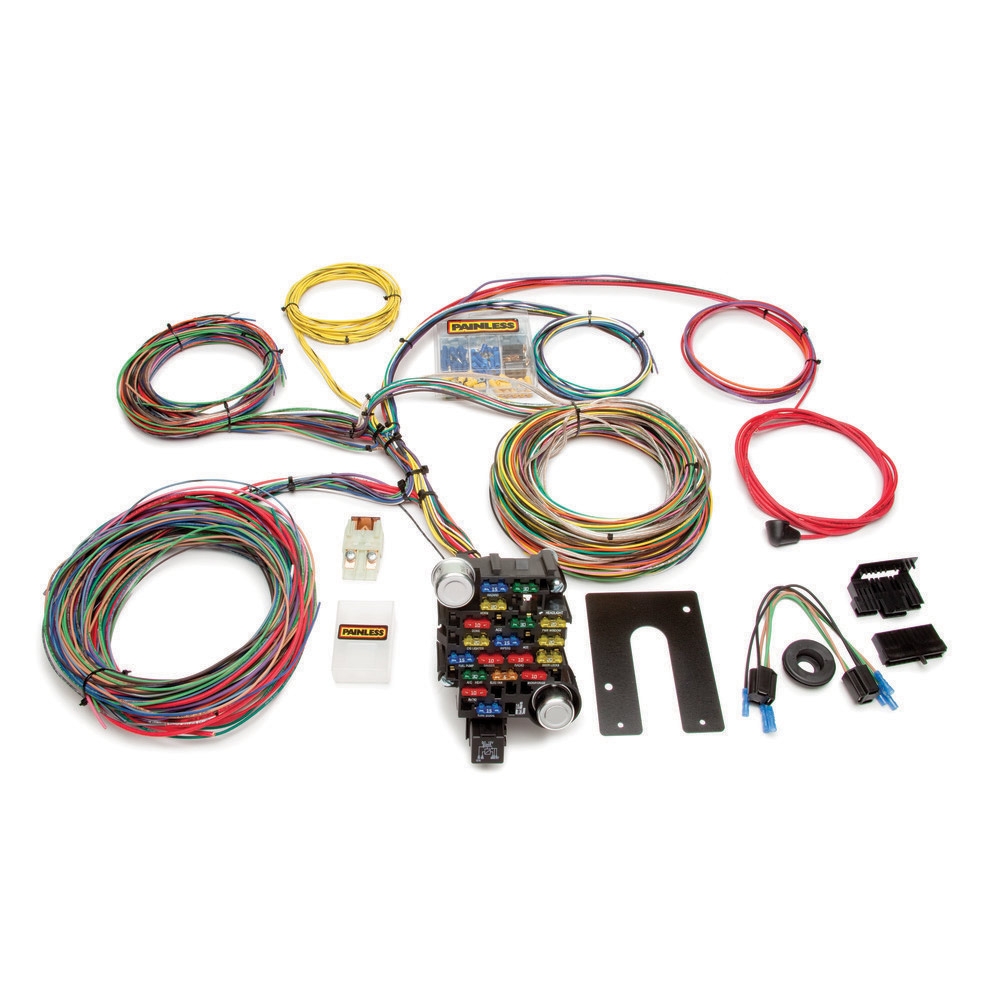

This Painless Performance 28 circuit chassis harness is their most widely used customizable automotive wiring harness. This universal kit is great for hot rod or street rod builds, but you'll find that it's easily adaptable to almost any vehicle including larger full size or muscle cars. This kit comes without the GM column mounted ignition switch connectors. Included with this harness are the following parts; a GM engineered fuse block and Painless mounting bracket; GM turn signal connectors; prewired plugs for the headlights and dimmer switch; and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.
Wire your classic car once and wire it right with a Painless Customizable wiring harness.
Number of Circuits: 28 Circuits - 18 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Universal
Fuse Type: Blade and Maxi Fuse
Firewall Passthrough: Grommet
Color Code Based: GM
Circuit Designations: Printed on Wires
Connections Included:
GM Steering Column Turn Switch, Two Headlight Pigtails, 10SI and 12 SI Alternator, Dimmer Switch
This harness includes circuits for:
- A/C and Heat
- Accessory
- Accessory / Cigarette Lighter
- Accessory / Trunk Light
- Backup Lights
- Brake Lights
- Charging
- Cruise Control
- Dome Light
- Electric Choke
- Electric Fuel Pump
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Power Antenna
- Power Door Locks
- Power Windows
- Radio/Clock (Constant and Switched)*
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
* Including Wires For:
- Fuel Gauge
- Oil Gauge
- Speakers
- Tachometer
- Temperature Gauge
- Voltmeter
