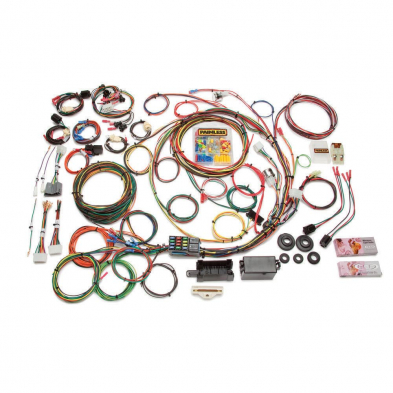

21 Circuit Direct Fit 1967-77 F-Series Ford Truck Harness w/o Switches
This Painless Performance 21 circuit direct fit 1967 - 1977 Ford F-Series Ford truck harness is the perfect upgrade. It uses many of the factory connections that are already pre-terminated. Also featured is our unique covered micro-fuse block with a 20 amp auxiliary relay circuit for accessories such as fog lights, or an electric fuel pump. Each wire is custom printed with the circuit identification as well as using Ford color codes for easy installation. We also offer part number 10118 which includes all brand new headlight, ignition, dimmer, wiper and brake switches.
Number of Circuits: 21 Circuits - 12 Fuses w/ Horn Relay, Accessory Relay and Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Mini Blade and Maxi Fuse
Firewall Passthrough: Multiple Grommet
Color Code Based: Factory Ford
Circuit Designations: Printed on Wires
This harness includes circuits for:
- A/C and Heat
- Accessory (Relayed)
- Accessory / Cigarette Lighter
- Backup Lights
- Brake Lights
- Cargo Lamp
- Charging
- Dome Light
- Electric Choke
- Emergency Flashers
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights and License Plate Light
- Turn Signals
- Wipers and Washer Pump
* Including Wires For:
- Ammeter
- Brake Warning Light
- Four Wheel Drive Light
- Fuel Gauge
- Oil Gauge
- Tachometer
- Temperature Gauge
Complete Ford Color-Code Direct Fit Wiring Harness for:
- 1967 Ford F-Series Pickup Truck
- 1968 Ford F-Series Pickup Truck
- 1969 Ford F-Series Pickup Truck
- 1970 Ford F-Series Pickup Truck
- 1971 Ford F-Series Pickup Truck
- 1972 Ford F-Series Pickup Truck
- 1973 Ford F-Series Pickup Truck
- 1974 Ford F-Series Pickup Truck
- 1975 Ford F-Series Pickup Truck
- 1976 Ford F-Series Pickup Truck
- 1977 Ford F-Series Pickup Truck
Fitment:
- Year: 1967-1977
- Make: Ford
- Model: Truck
- Engine: Carbureted or Any Stand Alone Fuel Injection
- Trans.: Any
