22 Circuit Classic Customizable 1975 and Later Jeep CJ Harness

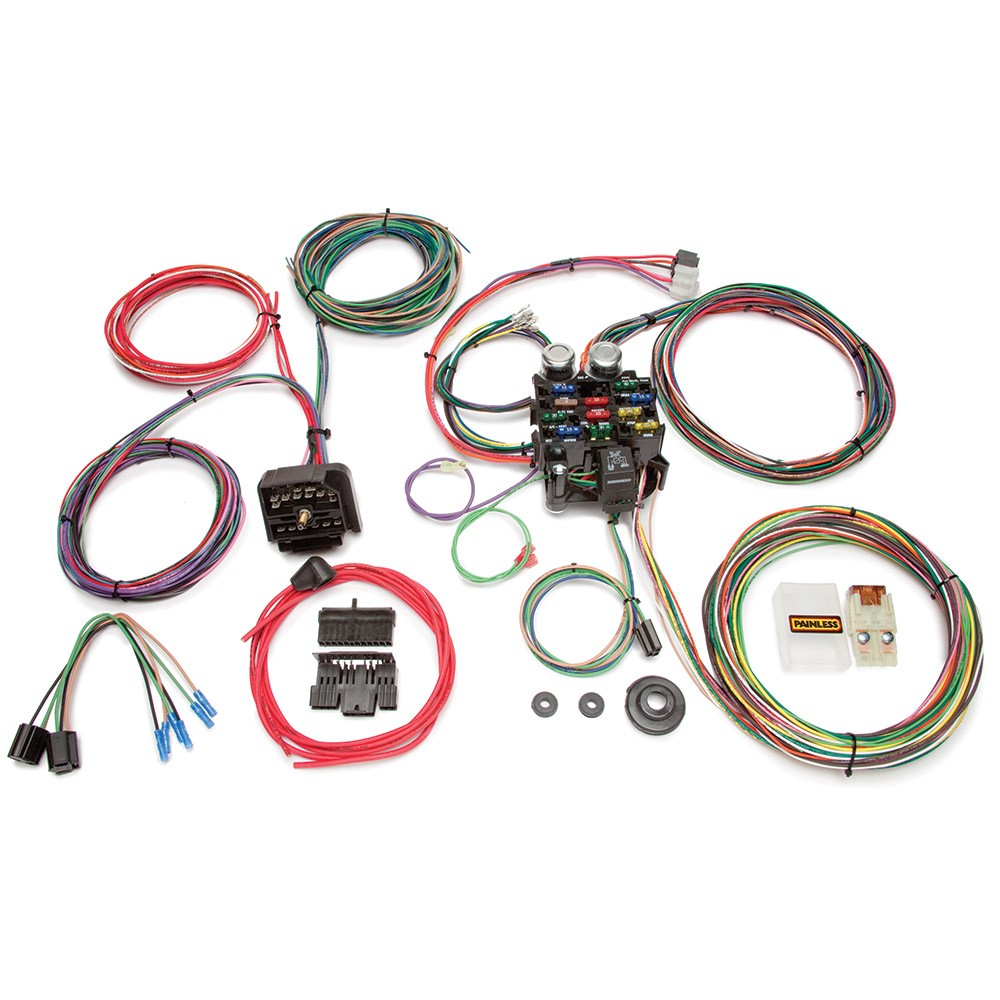

This 22 circuit Painless Performance factory upgrade for 1976 and later CJ Jeeps uses the OEM style fuse block. Open ended wire leads allow for custom routing of wires for your CJ. This harness is designed to be a customizable kit, and routes the wire through the firewall via a bulkhead connector. Like from the factory on your Jeep, the ignition switch is in the column. This kit includes GM column mounted ignition switch connectors and a GM column mounted turn signal switch connector pre-terminated and ready to install. Also included are pre-wire plugs for headlights and the dimmer switch. Each wire is custom printed with the circuit identification as well as using factory color codes for easy installation.
Number of Circuits: 12 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Universal
Fuse Type: Blade and Maxi Fuse
Firewall Passthrough: Bulkhead Connector
Color Code Based: Factory Jeep
Circuit Designations: Printed on Wires
Connections Included:
Column Mounted Ignition Switch, Turn Switch, Dimmer Switch, Two Headlight Pigtails, 10SI and 12 SI Alternator, HEI Power and Tach and 20 Extra 56 Series Terminals for use with any Factory GM 56 Series Connector such as Headlight Switch, Wiper Switch or A/C Switch/Blower Motor.
This harness includes circuits for:
- A/C and Heat
- Accessory / Cigarette Lighter
- Backup Lights
- Brake Lights
- Charging
- Dome Light
- Electric Choke
- Emergency flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Under Hood Light
- Wipers
* Including Wires For:
- Emergency Brake Light
- Four Wheel Drive Light
- Fuel Gauge
- Oil Gauge
- Tachometer
- Temperature Gauge
- Voltmeter
