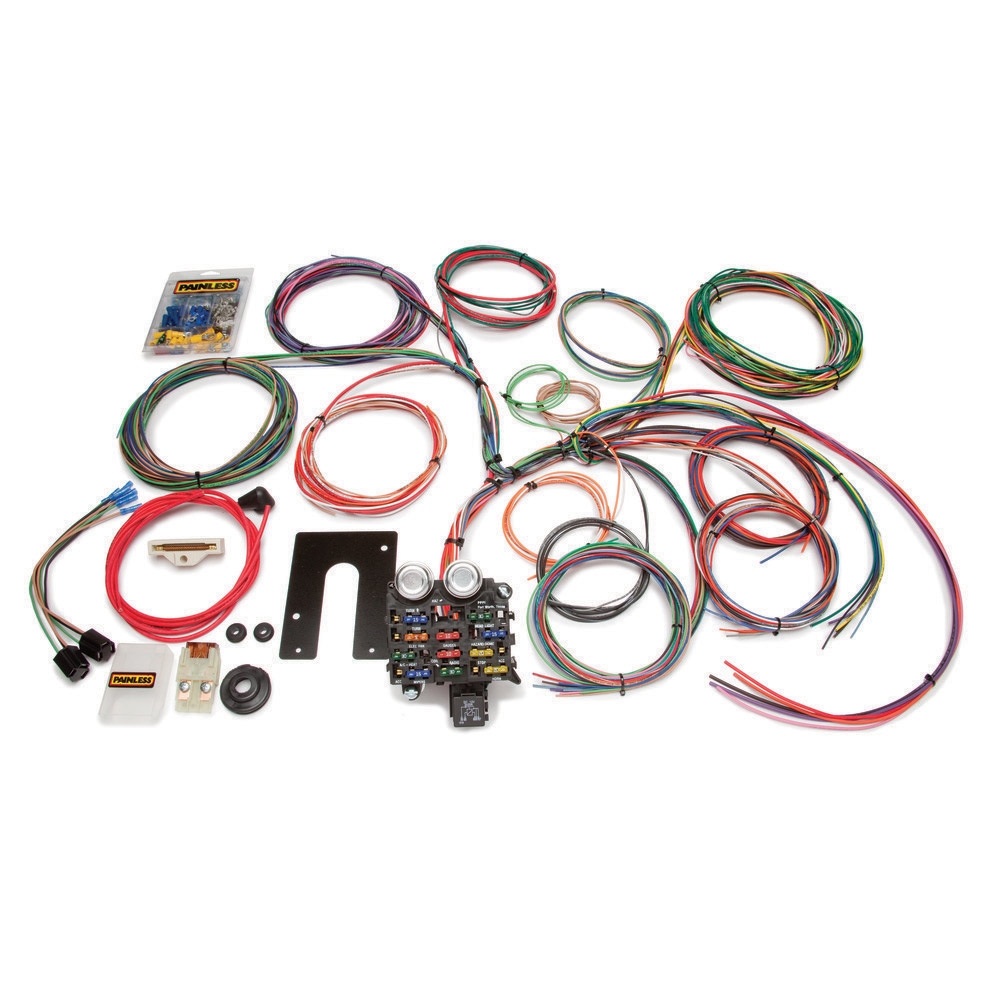

1959-75 Jeep CJ Series 22 Circuit Classic Wiring Harness

Part Number: PPP10105

Leadtime Estimate if Not in Stock
Ships In 7-10 Days
US$490.00

Status: In Stock

KT (1)

Description

Description

22 Circuit Classic Customizable 1974 and Earlier Jeep CJ Harness

This 22 circuit Painless Performance factory upgrade harness for 1974 and earlier CJ Jeeps uses the OEM style fuse block. Open ended wire leads allow for custom routing of the wiring for your CJ. This harness routes the wires through a firewall via a grommet in the bulkhead and the ignition switch is in the dash for your earlier Jeep CJ. Also included are pre-wire plugs for headlights. Each wire is custom printed with the circuit identification as well as using factory color codes for easy installation.

Number of Circuits: 22 Circuits - 12 Fuses w/ Horn Relay and Maxi Fuse

Harness Length: Factory Fitment

Fuse Type: Blade and Maxi Fuse

Firewall Passthrough: Bulkhead Connector

Color Code Based: Factory Jeep

Circuit Designations: Printed on Wires



Connections Included:



Two Headlight Pigtails, 10SI and 12 SI Alternator, Dimmer Switch and 20 Extra 56 Series Terminals for use with any Factory GM 56 Series Connector such as Headlight Switch, Wiper Switch or A/C Switch/Blower Motor.



This harness includes circuits for:

  • A/C and Heat
  • Accessory / Cigarette Lighter
  • Backup Lights
  • Brake Lights
  • Charging
  • Dome Light
  • Electric Choke
  • Emergency flashers
  • Fan Relay Activation Power
  • Fused Power Source
  • Headlights
  • Horn (Relay)
  • Ignition Coil
  • Instrument Panel Lighting and Gauges*
  • Park Lights
  • Radio/Clock (Constant and Switched)
  • Starting
  • Tail Lights
  • Third Brake Light
  • Turn Signals
  • Under Hood Light
  • Wipers



* Including Wires For:

  • Brake Warning Light
  • Emergency Brake Light
  • Four Wheel Drive Light
  • Fuel Gauge
  • Oil Gauge
  • Tachometer
  • Temperature Gauge
  • Voltmeter

Fitment:

  • Year: 1944-1975
  • Make: Jeep
  • Model: CJ
  • Engine: Carbureted or Any Stand Alone Fuel Injection
  • Trans.: Any

Yogi's strives on quality customer service along with quality parts. Some of the ways we ensure to do this is to test out products on our own project cars along with working with the vendors on improvements and pricing. One of the vendors we work closely with is Painless Performance. They provide easy to use materials for your wiring needs. They label and color code all wiring products to ensure a painless install process.

Applications

Applications

Fitment

  • 1959-1975 Jeep CJ3
  • 1959-1975 Jeep CJ5
