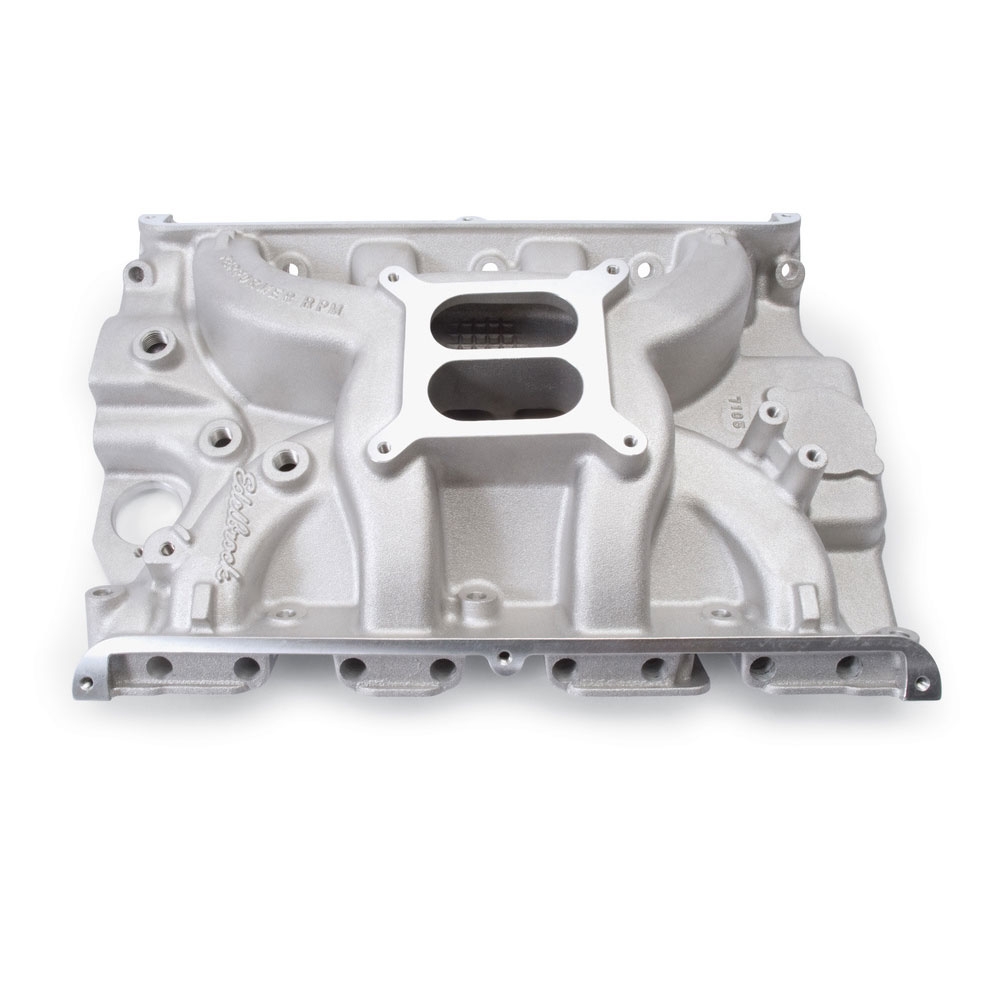

Performer RPM FE Manifold (1500-6500 rpm) - Satin Finish
Performer RPM FE intake manifold is designed for high-performance street 390-406-410-427-428 c.i.d. Ford FE V8's with standard 390-428 c.i.d., 427 lowith medium-rise or Edelbrock Performer RPM FE heads. The dual-plane constant cross-sectional area design builds low and mid- range acceleration while optimized runner paths make exceptional top-end horsepower. Has provision for adding the PCV or breather flange at rear. No exhaust crossover passage. INSTALLATION NOTES: bull; Recommended intake gasket: Edelbrock # 7224 bull; Manifold height: A-4.89", B-6.04" bull; Carb pad height: 5.46" bull; Carb recommendations: Edelbrock Thunder Series AVS or Performer Series 650-800 cfm. For automatic transmissions use # 1483 or # 1844 bull; Port exit dimensions: 1.16" x 1.97" bull; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS. bull; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
