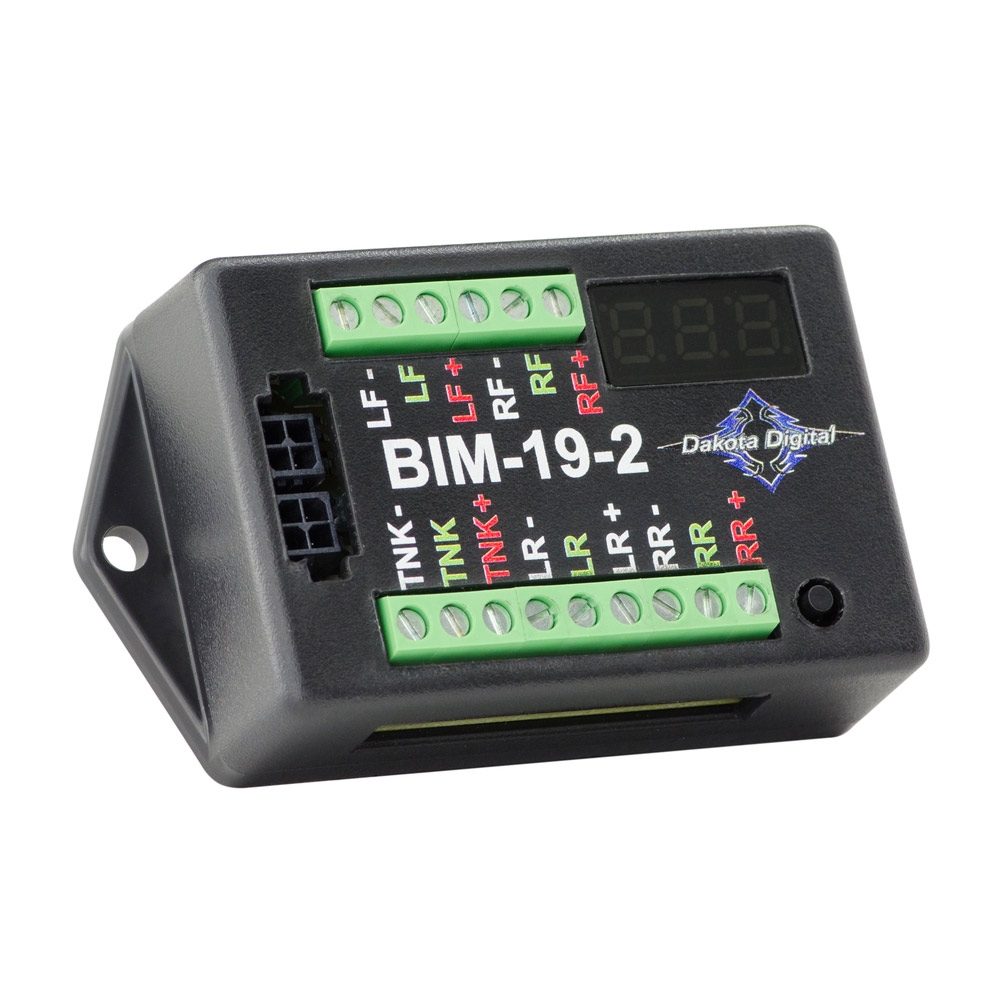

The Dakota Digital BIM-19-2 Quad Air Pressure Module allows you to monitor 2- 4 bag pressures on your air ride system. Choose between a 4 corner, left and right or front and rear pressure system. Also available tank pressure reading.
| Required Sender: |
Range |
Resolution |
Low Warning |
High Warning |
| SEN-03-9 |
0- 300psi |
1psi |
0- 250psi |
48- 300psi |
*The BIM-19-2 is designed to supply information to the VFD3 rev. G, VHX, HDX, and RTX control box instrument systems only. Earlier control boxes (with an aluminum case) are not compatible with the BIM family of Expansion Modules.
** The BIM-19-2 supersedes the BIM-19-1
